Autel MaxiCharger AC Lite Home (50 A)

Level 2, wall-mounted, 50 A (12 kW), J1772 or NACS, 25 ft cable

Output: 50 A (12 kW)
Connector: J1772 or NACS
Cable length: 25 ft
Verified price: $487

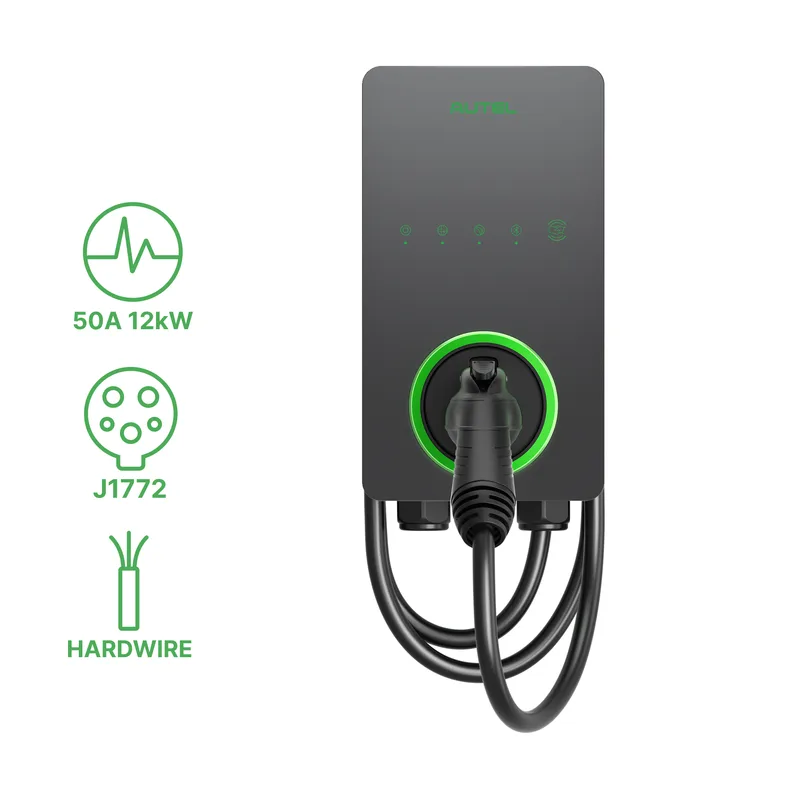

Manufacturer photo of the Autel MaxiCharger AC Lite Home (50 A) — Manufacturer photo

ENERGY STAR Certified

ENERGY STAR certification verifies the unit's measured standby efficiency against the federal specification.

Specifications

Full specifications for Autel MaxiCharger AC Lite Home (50 A)
Charging
Output power what this means: Output power The maximum power the charger delivers. Higher power means a faster charge. This figure is the unit's own amperage times its supply voltage, which is what power means on a single phase AC circuit, so it can read slightly below a maker's marketing figure: a 40 amp charger on 240 volts is 9.6 kW even where the box says 10.	12 kW
Max output current what this means: Max output current The maximum current the unit draws. It sets the circuit breaker and wire size the install needs.	50 A
Charger level what this means: Charger level The EVSE class. Level 2 runs on a 240 volt circuit; Level 1 uses a standard 120 volt outlet.	Level 2
Charging outputs what this means: Charging outputs How many vehicles the unit can connect to at once. Most home units have one.	1
Connectivity what this means: Connectivity How the charger connects for app control, scheduling, and firmware updates, or whether it runs offline only.	Wi-Fi or Gigabit Ethernet
Extra features what this means: Extra features Additional hardware the model ships with, such as a display, an RFID reader, or a card reader.	Radio Frequency Identification (RFID)
Idle power draw what this means: Idle power draw Power the unit draws while plugged in but not charging. Lower means less standby waste.	5.8 W
Installation
Form factor what this means: Form factor Portable units are cord sets that plug into an outlet and can travel in the car. Wall-mounted units install in one place, hardwired or on a dedicated outlet.	Wall-mounted
Power connection what this means: Power connection How the unit connects to supply power: a NEMA plug that fits a matching 240 volt outlet, or hardwired into the circuit by an electrician. Verified from manufacturer documentation, and left blank where it is not yet confirmed.	Hardwired
Enclosure rating what this means: Enclosure rating The NEMA or IP rating of the housing, which tells you whether the unit is built for outdoor mounting. NEMA 4 and IP55 or higher handle rain and dust; NEMA 3R is rain-resistant. Verified from manufacturer documentation.	NEMA 4X
Input voltage what this means: Input voltage The supply voltage the unit runs on. Level 2 home chargers use 240 volts.	240 V
Cable and connector
Cable length what this means: Cable length Length of the attached charging cable. A longer cable reaches across a driveway or to a second parking spot.	25 ft
Connector what this means: Connector The plug that connects to the vehicle. J1772 (also called Type 1) fits most non-Tesla EVs; NACS (the Tesla style plug, SAE J3400) is the emerging North American standard. Some models are sold in both, so you pick the version when you order. Verified from manufacturer specifications, and left blank where it is not yet confirmed.	J1772 or NACS
Cable gauge what this means: Cable gauge American Wire Gauge of the charging cable. A lower number is a thicker conductor.	9 AWG
Identity and provenance
Model number what this means: Model number The manufacturer model number, useful for cross checking listings and permits. In some model numbers, x and # stand for variant positions such as color or cable length options.	Maxi US AC LW12
Manufacturer what this means: Manufacturer The ENERGY STAR partner that makes or private labels this model, which can differ from the brand name.	Autel Digital Power Co., Ltd.
Sold in what this means: Sold in Countries where the model is certified for sale.	United States, Canada
On the market since what this means: On the market since When the model became available for purchase.	November 2022
Warranty what this means: Warranty The manufacturer's stated warranty. Terms can differ by country. Some warranties require product registration or professional installation; the manufacturer's page has the conditions. Verified from manufacturer documentation.	3 years

Practical numbers

Minimum circuit breaker: 70 A; the electrical code sizes circuits at 125 percent of a continuous load like EV charging
Full charge, 75 kWh battery: 6.3 hours if the vehicle accepts 12 kW AC; many cap at 9.6 to 11.5 kW
Full charge, 60 kWh battery: 5.0 hours if the vehicle accepts 12 kW AC; many cap at 9.6 to 11.5 kW
Cost per full charge (same for any Level 2 unit): $15.49 at the national average residential rate (May 2026); your electricity rate decides this, not the charger
Standby electricity cost: About $9.37 a year at the national average rate, drawn while the unit sits plugged in and not charging

A charger is a continuous load, so code sizes its circuit at 125 percent of the charger's rating: that breaker figure is the minimum, not a suggestion. On an older panel the wire run and any service upgrade can cost more than the charger itself, so price the electrical work before settling on an amperage. How big a charger actually finishes the job.

Exact numbers for your car and state: the charge time calculator and the charging cost calculator.

Trade-offs

Ties for the slowest output in its Over 48 A class (54 models).

These are measurements against the rest of the database, not a verdict. Nothing else about this model reads as unusual for its class.

Price check

Retail pricing observed in public listings as of August 22, 2026:

$487.20 direct from the manufacturer's own store, the only verified listing.

Buying options

As listed in the manufacturer's own store:

AC Lite Home 50A 12kW EV Charger \| Limited Edition \| CA	$454.50 sold out
J1772 (Non-Tesla EV) / Dark Gray	$479.43 sold out
J1772 (Non-Tesla EV) / Silver	$479.43 sold out
J1772 (Non-Tesla EV) / Sierra Blue	$479.43 sold out
Dark Gray	$487.20
Wood Grain	$487.20
Silver	$487.20
Sierra Blue	$487.20

Buy from AutelCheck eBay listings

eBay listings change daily; a match for this exact model is not guaranteed. Prices move often and can vary by configuration; always confirm the current price with the retailer. The buy links and the eBay link are affiliate links that support this site; see the affiliate disclosure.

Similar units in the Over 48 A class

Autel MaxiCharger AC Single (50A) $479 J1772 50 A 25 ft cable
ChargePoint Home Flex (CPH50) $494-$549 J1772 or NACS 50 A 18 ft cable
EVDANCE Home Level 2 EV Charger J1772 Wall-mounted Hardwired In - 50A $390 J1772 50 A 25 ft cable
Schumacher SEV1600 Wall Charger $464 J1772 50 A 25 ft cable

Where this model is listed

This model is listed in these categories:

It delivers its full rated output to these vehicles:

That is everything this database holds on the Autel MaxiCharger AC Lite Home (50 A): every figure above is verified against a primary source or left blank. Compare it against the rest, or see the others in NACS home chargers.

Prices and specifications verified August 22, 2026, and re-checked weekly after that. How these numbers are checked.
