MUSTART Level 2 Tesla EV Charger, 16/25/32/40/48 A adjustable (23 ft cord)

Level 2, wall-mounted, 48 A (11.52 kW), NACS, 23 ft cable

Output
48 A (11.52 kW)
Connector
NACS
Cable length
23 ft
Verified price
$199

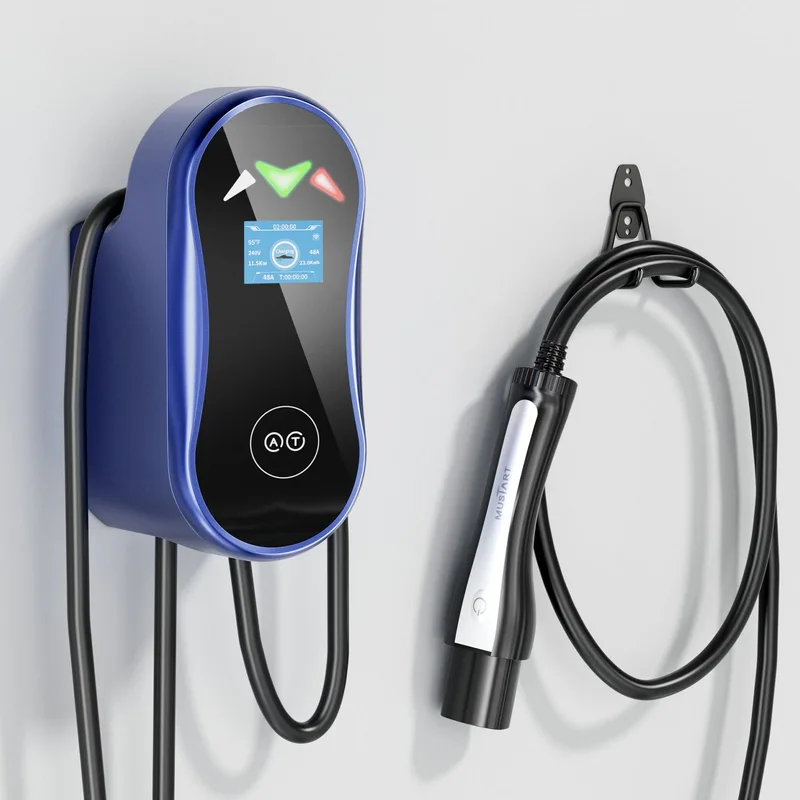

Manufacturer photo of the MUSTART Level 2 Tesla EV Charger, 16/25/32/40/48 A adjustable (23 ft cord)

ENERGY STAR Certified

ENERGY STAR certification verifies the unit's measured standby efficiency against the federal specification.

Specifications

Charging
Output power
what this meansThe maximum power the charger delivers. Higher power means a faster charge. This figure is the unit's own amperage times its supply voltage, which is what power means on a single phase AC circuit, so it can read slightly below a maker's marketing figure: a 40 amp charger on 240 volts is 9.6 kW even where the box says 10.
11.52 kW
Max output current
what this meansThe maximum current the unit draws. It sets the circuit breaker and wire size the install needs.
48 A
Charger level
what this meansThe EVSE class. Level 2 runs on a 240 volt circuit; Level 1 uses a standard 120 volt outlet.
Level 2
Charging outputs
what this meansHow many vehicles the unit can connect to at once. Most home units have one.
1
Connectivity
what this meansHow the charger connects for app control, scheduling, and firmware updates, or whether it runs offline only.
Not networked
Extra features
what this meansAdditional hardware the model ships with, such as a display, an RFID reader, or a card reader.
Radio Frequency Identification (RFID)
Idle power draw
what this meansPower the unit draws while plugged in but not charging. Lower means less standby waste.
2.1 W
Installation
Form factor
what this meansPortable units are cord sets that plug into an outlet and can travel in the car. Wall-mounted units install in one place, hardwired or on a dedicated outlet.
Wall-mounted
Power connection
what this meansHow the unit connects to supply power: a NEMA plug that fits a matching 240 volt outlet, or hardwired into the circuit by an electrician. Verified from manufacturer documentation, and left blank where it is not yet confirmed.
Hardwired
Input voltage
what this meansThe supply voltage the unit runs on. Level 2 home chargers use 240 volts.
240 V
Cable and connector
Cable length
what this meansLength of the attached charging cable. A longer cable reaches across a driveway or to a second parking spot.
23 ft
Connector
what this meansThe plug that connects to the vehicle. J1772 (also called Type 1) fits most non-Tesla EVs; NACS (the Tesla style plug, SAE J3400) is the emerging North American standard. Some models are sold in both, so you pick the version when you order. Verified from manufacturer specifications, and left blank where it is not yet confirmed.
NACS
Cable gauge
what this meansAmerican Wire Gauge of the charging cable. A lower number is a thicker conductor.
8 AWG
Identity and provenance
Model number
what this meansThe manufacturer model number, useful for cross checking listings and permits. In some model numbers, x and # stand for variant positions such as color or cable length options.
MT-AABGST4NOP-48A23FT-AT
Manufacturer
what this meansThe ENERGY STAR partner that makes or private labels this model, which can differ from the brand name.
ORANGEQ SOLUTIONS CO.
Sold in
what this meansCountries where the model is certified for sale.
United States, Canada
On the market since
what this meansWhen the model became available for purchase.
June 2024
Warranty
what this meansThe manufacturer's stated warranty. Terms can differ by country. Some warranties require product registration or professional installation; the manufacturer's page has the conditions. Verified from manufacturer documentation.
2 years

Practical numbers

Minimum circuit breaker
60 A; the electrical code sizes circuits at 125 percent of a continuous load like EV charging
Full charge, 75 kWh battery
6.5 hours if the vehicle accepts 11.52 kW AC; many cap at 9.6 to 11.5 kW
Full charge, 60 kWh battery
5.2 hours if the vehicle accepts 11.52 kW AC; many cap at 9.6 to 11.5 kW
Cost per full charge (same for any Level 2 unit)
$15.49 at the national average residential rate (May 2026); your electricity rate decides this, not the charger
Standby electricity cost
About $3.39 a year at the national average rate, drawn while the unit sits plugged in and not charging

A charger is a continuous load, so code sizes its circuit at 125 percent of the charger's rating: that breaker figure is the minimum, not a suggestion. On an older panel the wire run and any service upgrade can cost more than the charger itself, so price the electrical work before settling on an amperage. How big a charger actually finishes the job.

Exact numbers for your car and state: the charge time calculator and the charging cost calculator.

What stands out

  • Verified price of $199 is lower than 86 percent of the 190 models that list one (median: $477).

Price check

Retail pricing observed in public listings as of August 22, 2026:

$199.00 direct from the manufacturer's own store, the only verified listing.

Buy from MUSTARTCheck eBay listings

eBay listings change daily; a match for this exact model is not guaranteed. Prices move often and can vary by configuration; always confirm the current price with the retailer. The buy links and the eBay link are affiliate links that support this site; see the affiliate disclosure.

Similar units in the 41 to 48 A class

Where this model is listed

This model is listed in these categories:

It delivers its full rated output to these vehicles:

That is everything this database holds on the MUSTART Level 2 Tesla EV Charger, 16/25/32/40/48 A adjustable (23 ft cord): every figure above is verified against a primary source or left blank. Compare it against the rest, or see the others in 48 amp EV chargers.

Prices and specifications verified August 22, 2026, and re-checked weekly after that. How these numbers are checked.
